Specification
Type: UCI Gravel frame disc
Frame: Graro (Flat mount)
Material: Toray T700 & T800 & T1000 carbon
Weave: Painting
Weight: Fork-470g (Painting)
Frame in Glossy YS2386-1: 52cm-1095+-20g
Frame in Glossy YS955: 52cm-1073+-20g
Headtube: 1-1/2",1-1/2"
BB: T47
Available size: 49/ 52/ 54/ 56/ 58cm
Max tire size: MTB-29er x 1.95inch Road disc-700C x 45mm
Cable plug: Internal Cable Routing
Axle: 100*12mm/142*12mm
Rotor Size: Front-160mm; Rear-140mm
Package included: Frame+fork+seatpost+bearings+thru axles+hanger
If you order the handlebar together, the package included will add handlebar and spacers.
Features：
More Tire Clearance, More Comfort
The Graro boasts a full carbon frame with a dropped chainstay, offering ample clearance for tires up to 700x45 mm. This design ensures a lightweight, responsive ride with exceptional control on diverse terrains.
Versatile Mounting Options
With multiple mounting points for cages, bags, and fenders, the Graro is ready for long-distance touring, bikepacking, or your daily commute, offering unparalleled adaptability.
Sleek Internal Cable Routing
Achieving a clean, aerodynamic profile, the internal cable routing not only enhances the bike's aesthetics but also protects cables from the elements, ensuring smoother operation and reduced maintenance.
Aerodynamic Design for Enhanced Performance
The Graro gravel bike frame revolutionizes the concept of aerodynamics in off-road cycling. Utilizing advanced aerodynamic design principles, the bike features meticulously shaped main tubes - the down tube, head tube, seat tube, seat post, and seat stays - all tailored to minimize air resistance. This strategic design aims to optimize airflow and reduce drag, enhancing overall speed and performance.
Reliable T47 Bottom Bracket
The T47 bottom bracket standard combines the benefits of larger, threaded bottom brackets or improved durability and easier maintenance, making it ideal for the rigors of gravel riding.
Flexible Drivetrain Options
Catering to a wide range of riding styles and terrains, the Graro supports both 1X and 2X chainring combinations, offering versatility whether you're climbing steep hills or racing on flat terrains.
Universal Derailleur Hanger (UDH) Technology
Our Graro incorporates the cutting-edge UDH system, which represents a significant advancement in derailleur hanger design. With UDH, finding a compatible hanger becomes straightforward, no matter where your adventures take you. This feature is a game-changer for riders who value reliability and ease of maintenance, especially in remote areas or during long tours.
Innovative Gravel-Specific Geometry
The Graro introduces a new gravel-specific geometry, meticulously designed to balance comfort and efficiency. This ensures a smooth ride over rough surfaces, superior control on descents, and efficient power transfer for climbing.

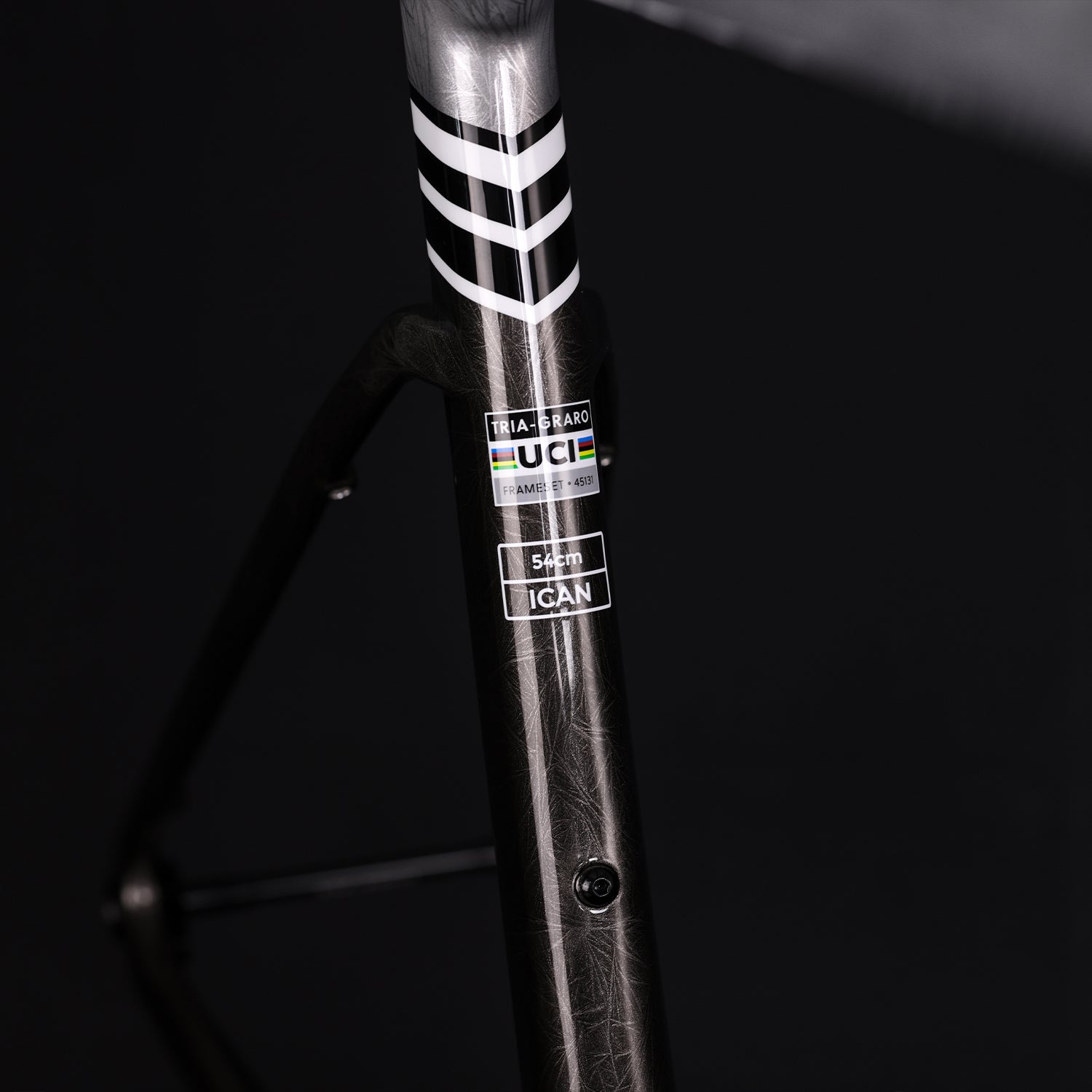

UCI Certification
The ICAN Graro frame is certified and approved by the Union Cycliste Internationale (UCI), which governs internationalbicycle racing. Only products that pass rigorous testing receive this certification, allowing them to be used in UCI-sanctioned road races.
Custom Painting Service for Personalized Style
Our Graro gravel bike frame takes customization to the next level with our bespoke painting service. This unique offering allows riders to personalize their bikes with a paint job that reflects their individual style and personality.
Size Recommendation：
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
