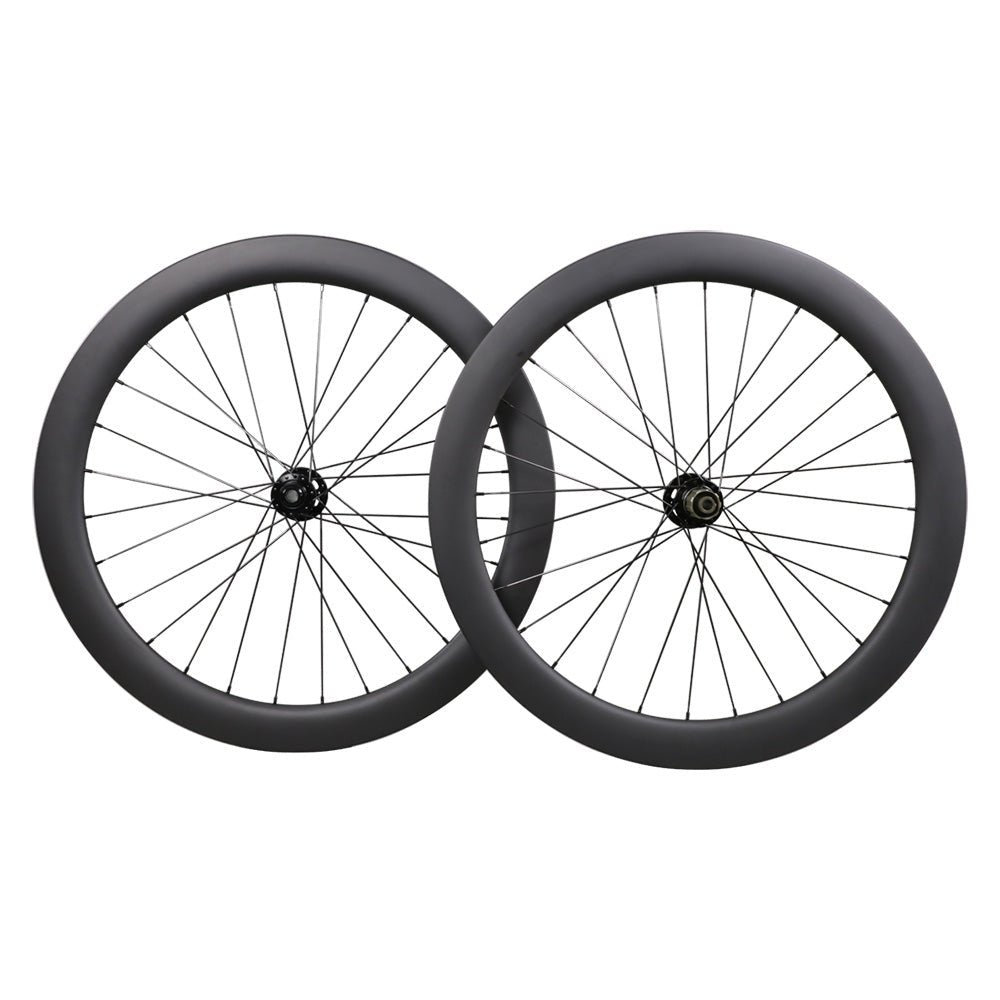

DT AERO 55 Disc Wheels Without Logos

  • Clincher tubeless ready
  • 18.35mm internal rim width, 25mm external width
  • Branded DT hubs, centerlock
  • Sapim CX-Ray spokes
  • Sapim Secure Lock nipples
  • Thru axles 12x100/12x142mm
  • 1529+-20g
€1.136,95
€1.136,95
Hubs: 240 Ratchet EXP 36T
Hubs Size: 12*100mm/12*142mm
Freehub: Shimano 11 Speed
Subtotal: €1.136,95
10 customers are viewing this product

Fast Delivery

15-Year Quality Assurance

2-year Warranty

DT AERO 55 Disc Wheels Without Logos

DT AERO 55 Disc Wheels Without Logos

€1.136,95

DT AERO 55 Disc Wheels Without Logos

€1.136,95
Hubs: 240 Ratchet EXP 36T
Hubs Size: 12*100mm/12*142mm
Freehub: Shimano 11 Speed

Fancy a set of deep section carbon fiber wheels for your disc braked road bike? Fancy using them to smash your Strava times? Then look no further than our Aero 55mm deep carbon fiber disc brake wheels.

Our new Aero series is based on our highly successful Fast and Light series. Our FL series wheels set the benchmark for fast, light, and strong disc brake wheels. We took their amazing wide and blunt shape and constructed the rim using a mix of Toray T700 and T800.

The mixing of the carbon fiber cloths allowed us to shave around 100g per wheelset when compared to our old T700 only FL series. Our tubeless ready 55mm deep rim will still cut through the wind just as easily as our FL55 but will now save you some energy on climbs, which is a win in our books.

We have then used Sapim CX-Ray spokes to lace this rim. We use the aero Sapim CX-ray spokes as we have found them to be among the lightest and stiffest spokes your hard earned can buy.

These spokes will then hold your choice of hub. You can pick from either the DT Swiss 350SL or 240EXP. The 350SL is the more affordable option, and the 240EXP is the lighter option. Both though come featuring DT Swiss quality, their Star Ratchet system, and tool-free servicing. These hubs will connect so fast when you put the power down that you will never want to try any other hubs again.

All of this wrapped up in our two-year warranty.

Features

Wide Rim Tech

25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.

2-Way Clincher Tubeless. Tubes or No-Tubes

Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.

Sapim CX-RAY As light as a titanium spoke

The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.

UCI Approved

This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races.

UCI logo

Specification

Type  Carbon Racing Bike Wheelset
Material  Toray T700 & T800
Size  700C
Rim

 Finish: UD Matt
 Drills: 24/24 Holes
 Width: External: 25mm

 Internal: 18.35mm

Depth  55mm
Profile  Clincher Tubeless Ready
Hub  DT 240EXP/350SL
Disc Type  Centerlock
Spoke  Sapim CX-Ray Spokes
Spoke Count  Front: 24   Rear: 24
Spoke Pattern  Front: 2-cross
 Rear: 2-cross
Nipple  Alloy  Color: Black
Cassette Compatibility  Shimano 11 speed
Wheelset Weight

 Total: 1529+-20g (DT350)

 Front: 698+-10g   Rear:  831+-10g

Brake Surface  No Braking Surface
Rider Weight Limit  242lbs/110kg
Guarantee  2 years
Free

 Rim Tape

Valves

Packing Size  81.5cm x 17cm x 65.5cm



Recommended Tire Pressure

Below Chart is our recommended tire pressure,you can see more click here

  STANDARD CLINCHER TIRE WITH INNER TUBE TUBELESS TIRES
≤ 65 KG RIDER 23mm - 95/100 psi
25mm - 90/95 psi
28mm - 85/90 psi
23mm - 90/95 psi
25mm - 85/90 psi
28mm - 80/85 psi
65 - 75 KG RIDER 23mm - 100/105 psi
25mm - 95/100 psi
28mm - 90/95 psi
23mm - 90/95 psi
25mm - 85/90 psi
28mm - 85/90 psi
75 - 85 KG RIDER 23mm - 101/106 psi
25mm - 96/101 psi
28mm - 91/96 psi
23mm - 95/98 psi
25mm - 90/95 psi
28mm - 85/90 psi
85 - 95 KG RIDER 23mm - 104/109 psi
25mm - 99/104 psi
28mm - 94/100 psi
23mm - 95/99 psi
25mm - 90/95 psi
28mm - 88/95 psi


IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels

More details can be known from "Warranty & Return".
