ICAN Alpha 50 plus disc road bike wheelset
ICAN Alpha 40 plus disc road bike wheelset
ICAN Carbon Disc Wheels Alpha 52 Disc 21mm Inner Width
ICAN Alpha 50 Disc Pro Wheels

A22 Road Frame & Alpha Disc Wheels

  • Aerodynamic design
  • Internal cable routing
  • BB86 bottom bracket
  • Balanced geometry
  • More affordable price
€1.037,95
€1.037,95
A22 Frame Size: 45cm--UDM
Wheelsets: Alpha 38 Disc-Shimano 11/12 Speed
Subtotal: €1.037,95
10 customers are viewing this product

Fast Delivery

15-Year Quality Assurance

2-year Warranty

A22 Road Frame & Alpha Disc Wheels

A22 Road Frame & Alpha Disc Wheels

€1.037,95

A22 Road Frame & Alpha Disc Wheels

€1.037,95
A22 Frame Size: 45cm--UDM
Wheelsets: Alpha 38 Disc-Shimano 11/12 Speed


We have recommended the best combination for you, if you are looking for the frame and wheelsets to build your full bike, you can buy them together.

You will get more affordable price. You only need to spend the cost of a big brand frame, you can get the frame and wheelset together with big brand

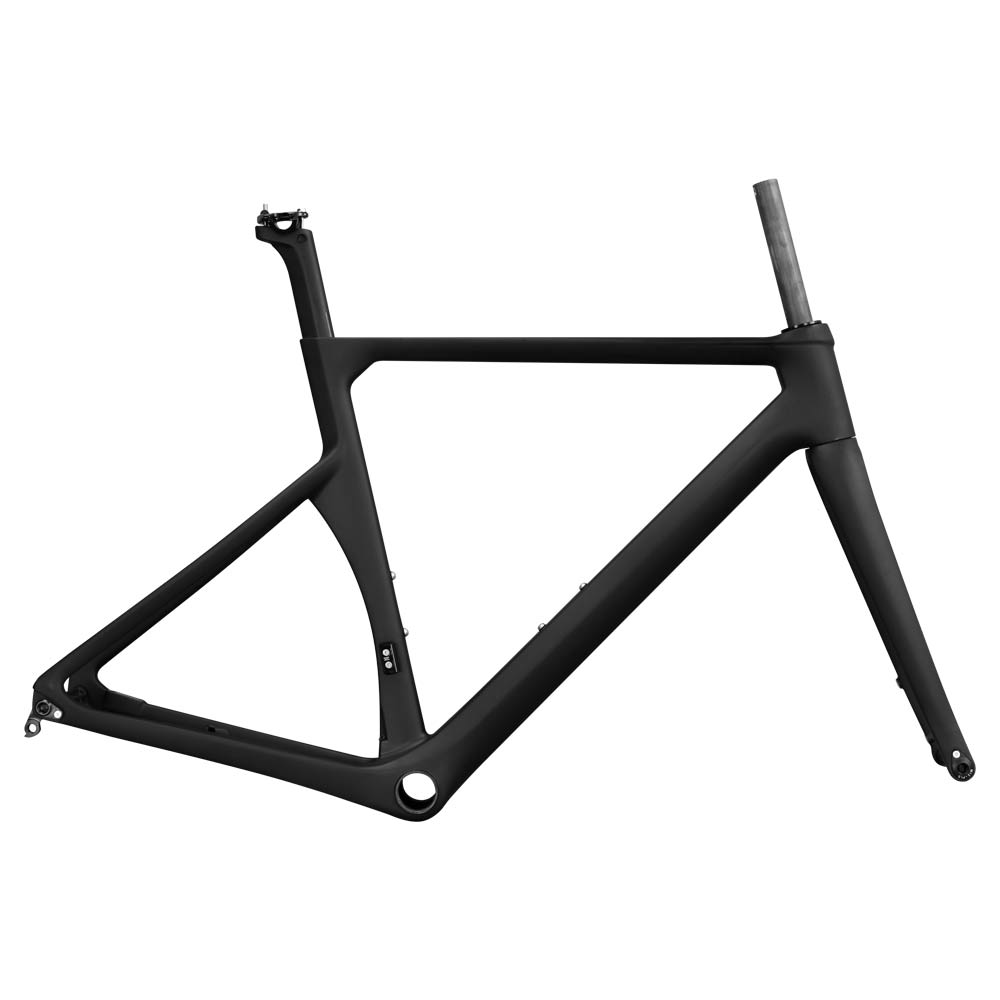

ICAN A22 FRAME

Type New Aero Carbon Road Disc Brake Frame
Material Toray T700 Carbon
Size 54/57cm
Fork  AO22 specify carbon fork
Headtube Straight 1 1/2" head tube
Weight 54cm 1115g
57cm 1248g
Seatpost

Adjustable Seatpost

Bottom bracket BB86
Max tire clearance

700*28c

700x28c(maxxis tire can be supported)

Brake mount type

Flat mount Disc brake 140mm

Dropout  Front 12*100mm thru-axle Rear 12*142mm thru-axle
Groupset Recommended install electronic shifting groupset
Handlebar&stem Compatible with ICAN handlebar HBA22

Test Standard

ISO4210



Type  Carbon Alpha Disc Wheelset
Rim   Alpha Disc
Material  Carbon Fiber Toray T700 & T800
Size  700C
Rim Wide

 40mm: External: 25mm Inner : 18.35mm

 50mm: External: 25mm Inner : 18.35mm

 38mm: External: 27.3mm Inner : 21mm

 52mm: External: 27.3mm Inner : 21mm

  40mm plus: External: 27.8mm Inner : 23mm

 50mm plus: External: 27.8mm Inner : 23mm

Depth  40/50/38/52mm
Profile  Clincher Tubeless Ready
Hub  ICAN D21 Hub (Centerlock, 12x100/12x142mm)
Spoke  Pillar SA1423 Spokes
Spoke Count  Front: 24   Rear: 24
Spoke Pattern  Front: 2-cross
 Rear: 2-cross

Nipple  Alloy  Color: Black
Cassette Compatibility  Shimano 10/11speeds
Wheelset Weight

Alpha 40 Pro Disc:Total: 1564g Front: 716g  Rear: 828g

Alpha 50 Pro Disc:Total: 1597g Front: 734g  Rear: 863g

Alpha 38 Disc:Total: 1480g Front: 682g  Rear: 798g

Alpha 52 Disc:Total: 1570g Front: 726g  Rear: 844g

Alpha 40 Plus Disc: Total: 1520g  Front: 700g  Rear: 820g

Alpha 50 Plus Disc: Total: 1555g  Front: 722g  Rear: 833g

Braking Surface  No Braking Surface
Recommended Tyre Size  700 x 25-30mm
Rider Weight Limit  110kg
Guarantee  2 years
Free

 Rim Rape

Valves

Packing Size  81.5cm x 17cm x 65.5cm


Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels
